[“Manufacturer’s designation:TwinGrip”, ‘overall length:200 mm
Jaw length:27 mm
Jaw width:11 mm
Hexagon across flats:22 mm
Jaw capacity for pipes:7 8 inch
Protection against trapping fingers:yes
Self-locking:yes
Number of fine adjustment steps:5
Type of jaws:3-point system
Handle:Multi-component covering
Material:Chrome vanadium electro-steel
Type of product:Pipe pliers
Version:

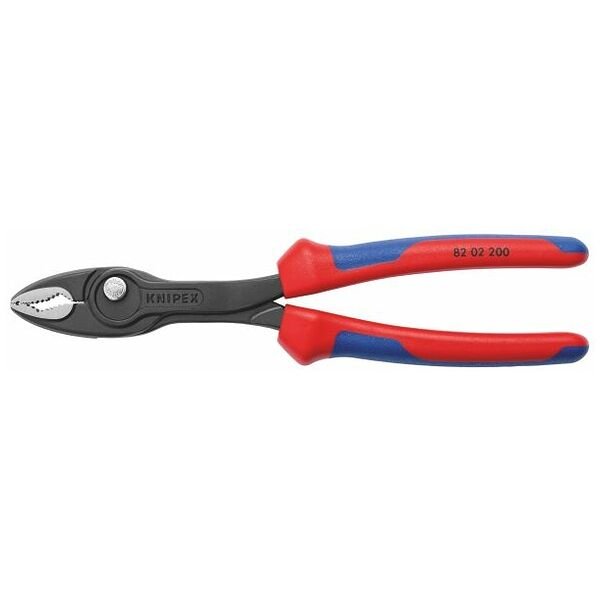

Special, extra slim head shape for use in tight spaces. Box joint (= double guidance). Designed to prevent fingers being trapped. Fine adjustment at intervals by means of a spring-loaded pushbutton, can be adjusted in 5 steps to precisely adapt the width. Front gripper and side gripper function. Jaws chemically greyed, polished head, teeth additionally induction hardened (approx. 61 HRC).Handles with multi-component coverings.
Gripping, tightening and loosening screws with worn heads and drives. Unique combination: Front and side gripping function, box joint, push button adjustment. Aggressive front gripping jaws with robust teeth and high leverage at the tip of the jaws. Very slim pliers: Work even in confined spaces, with a narrow turning zone for fast screw driving. Large front and side gripping capacity: for diameters and widths across flats of 4 – 22 mm. Reliable, frontal gripping of flat workpieces up to 8 mm by means of a three-point system. Triple adjustable sliding joint with push-button adjustment for precise adjustment of the grip width. Pinch stop reduces the risk of crushed fingers. Durable and resilient thanks to a robust box joint. Large front and side gripping capacity: for diameters and widths across flats of 4 – 22 mm.
Application:
Reliable frontal gripping of even flat workpieces due to three-point system. Gripping, tightening and releasing of even hardened screw heads as well as worn bolts and screws.
Material:
Chrome vanadium electro-steel, drop forged.
