Technical data:
Nominal ⌀ DC:10 mm
Coating:uncoated
Tool material:HSS
Standard:DIN 340
Type:N
Tolerance nominal ⌀:h8
Point angle:118 degrees
Shank:Plain shank
Number of cutting edges Z:2
Through-coolant:no
recommended maximum drilling depth L2:106 mm
Flute length Lc:121 mm
Overall length L:184 mm
Shank ⌀ Ds:10 mm

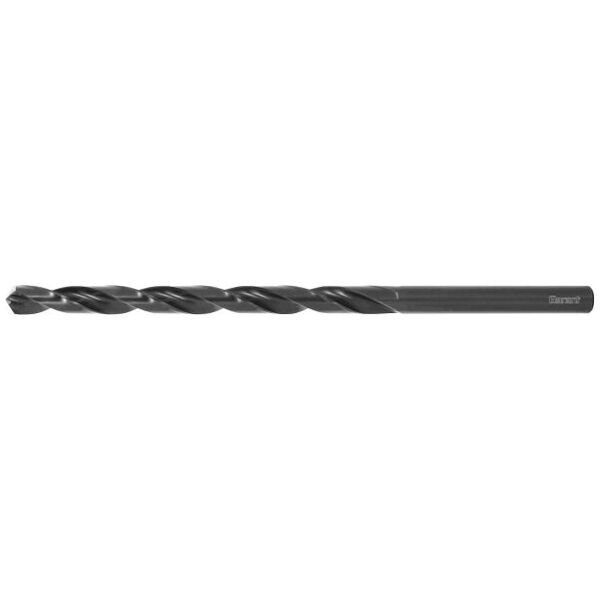

Feed f in steel < 750xa0N/mm2:0.07 mm rev. Colour ring:without Type of product:Jobber drill Version: Vaporised from 2.4 mm. Particularly for deep hole drilling (for deep holes, repeated chip evacuation is necessary).With point geometry shape A from size 4 mm. Advantage: Especially suitable for long reach purposes. (When used to drill deep holes, low feed rates and frequent drill pecks are necessary). Recommendation: Maximum drilling depth:L2 = LC - 1.5 × DC. Note: Suitable NC spotting drills No. 112103, 112110 and 112160 with 120° tip angle for enhanced process reliability.
