Technical data:
Width across flats 1:13 mm
Width across flats 2:15 mm
overall length L:238 mm
maximum ring ⌀ D1:28 mm
maximum ring ⌀ D2:31 mm
maximum ring height h1:20 mm
maximum ring height h2:21.5 mm
No. of teeth:72
Working arc:5 degrees
Manufacturing process:drop forged
Material:Chrome vanadium steel
Surface:matt chrome-plated
Width across flats:metric
Ring end cranked:yes
Ratchet reversible:no

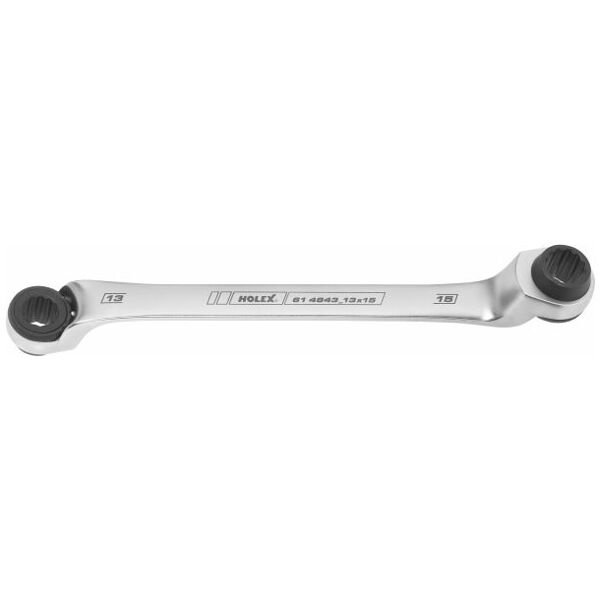

Type of product:Spanner
Version:
Drop-forged. With close tolerance jaw widths. Reversible for left- and right-hand tightening, plus centre position. With unequal jaw widths, deep cranked. Extremely small working arc of 5°.
Material:
Chrome vanadium steel, matt chrome-plated.
